Grit Recovery & Cleaning System

Pargill Investments - Dust Free Grit and Water Blasters Vacuum And Abrasive Recovery environmental surface preparation Systems.

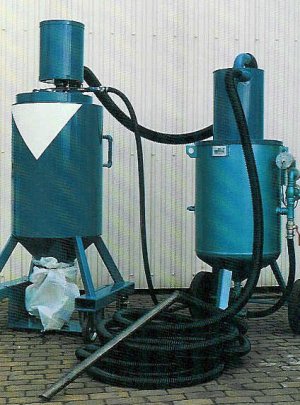

The DKV 2005 is a strong, versatile air powered vacuum system for the removal of dust & abrasives.



With the DKV 2005 De Kleijn BV made an air powered vacuum system which complies with contemporary environmental regulation and with the demands for substantial saving on waste disposal and grit use. During the development of the abrasive recovery system, De Kleijn BV paid a lot of attention to details, design & applications. Of course, the DKV 2005 endured extensive tests before  market introduction. In the first place the pneumatically driven DKV 2005 has been developed for recovery of abrasives and for application with the De Kleijn BV blast vessels. The DKV 2005 can also be used as a stand alone for the removal and filtering of a wide variety of (by-) products likes granulates and metal chips. As soon as the vacuum system is switched off, the filter of the DKV 2005 is automatically cleaned by an air flushing system.

The vacuum system is, due to its air driven nature, suitable for use in explosion risk areas. Optional as a dust separator. This separator can be mounted on a container or on a blast vessel for separation of duct and abrasive for instant reprocessing of the abrasive.



Pargill Investments - Dust Free Grit and Water Blasters Vacuum And Abrasive Recovery environmental surface preparation Systems.
Technical Specifications:
Vacuum / filter unit:

Measurements:

length   80cm     31.5in
width     91cm     36 in
height   220cm    87in
Pressure: 7.5 bar     100psi
Empty weight: 130kg      286lbs
Vacuum: 6000mm  by 100psi
Air Requirement: 5m3/min   by 100 psi
Filter- Polyester:  10m2     12 ft 2
Diameter Vacuum Hose: 3 in
Dust Emission: 99.7%  Recovery


Dust Separator:



Standard Vacuum Hose:



length 15m     50 ft

Maximum Vacuum Hose: length 30m     100ft
Height:

69cm       27 in

Weight:  27kg        60lbs
Diameter:  62 cm       24.5 in


For use in combination with 150 and 200 liter blast vessels



Container:



Measurements:



length   92cm    36 in
width    90cm     35 in

(without Separator) height  160cm    63 in
(without Separator) weight 98 kg     216 lbs



Please visit our Job History for additional information
